Fire Doors
Fire Doors
Steel, glazed and hollow metal systems up to 120 minutes
Single and double leaf fire-rated door systems engineered to compartmentalise fire and smoke, tested to EN 1634-1 and classified to EN 13501-2.
Product Range
Three Fire Door Systems, One Source

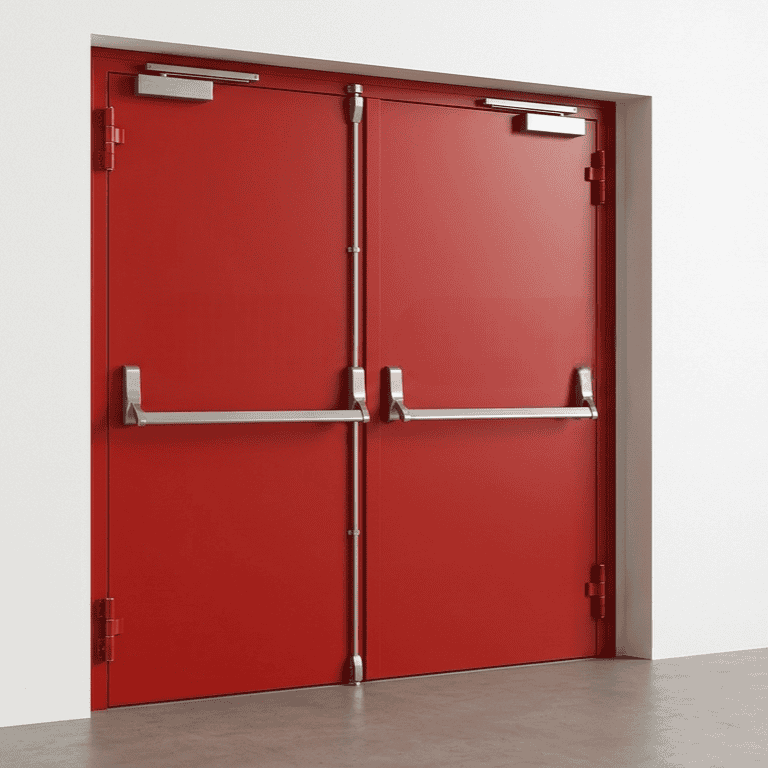

Steel Fire Door Systems
Single & Double Leaf
Single and double leaf fire-rated steel doors with ceramic wool or Rockwool infill, 46mm thickness, rated up to 120 minutes.
Learn More

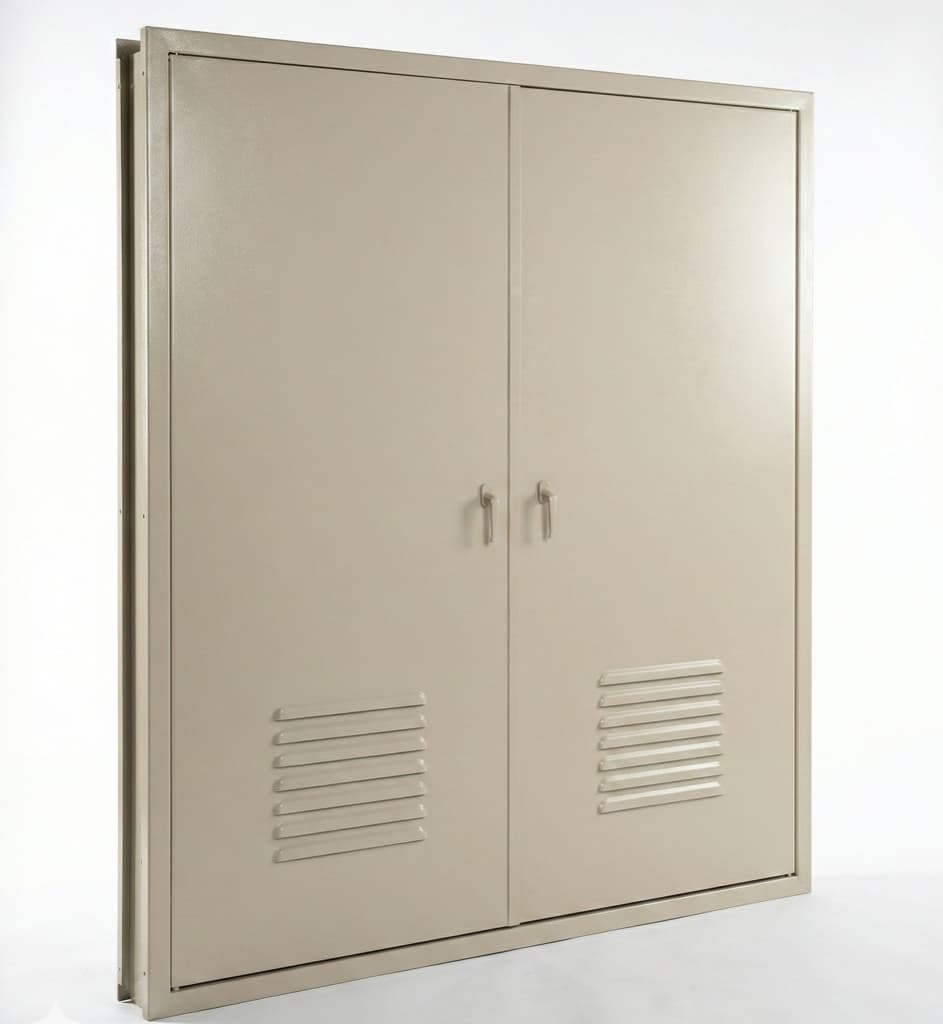

Hollow Metal Shaft Doors
Lift Shafts & Stairwells
Heavy-duty hollow metal doors for lift shafts, stairwells and utility risers, with honeycomb infill, rated up to 120 minutes.
Learn More

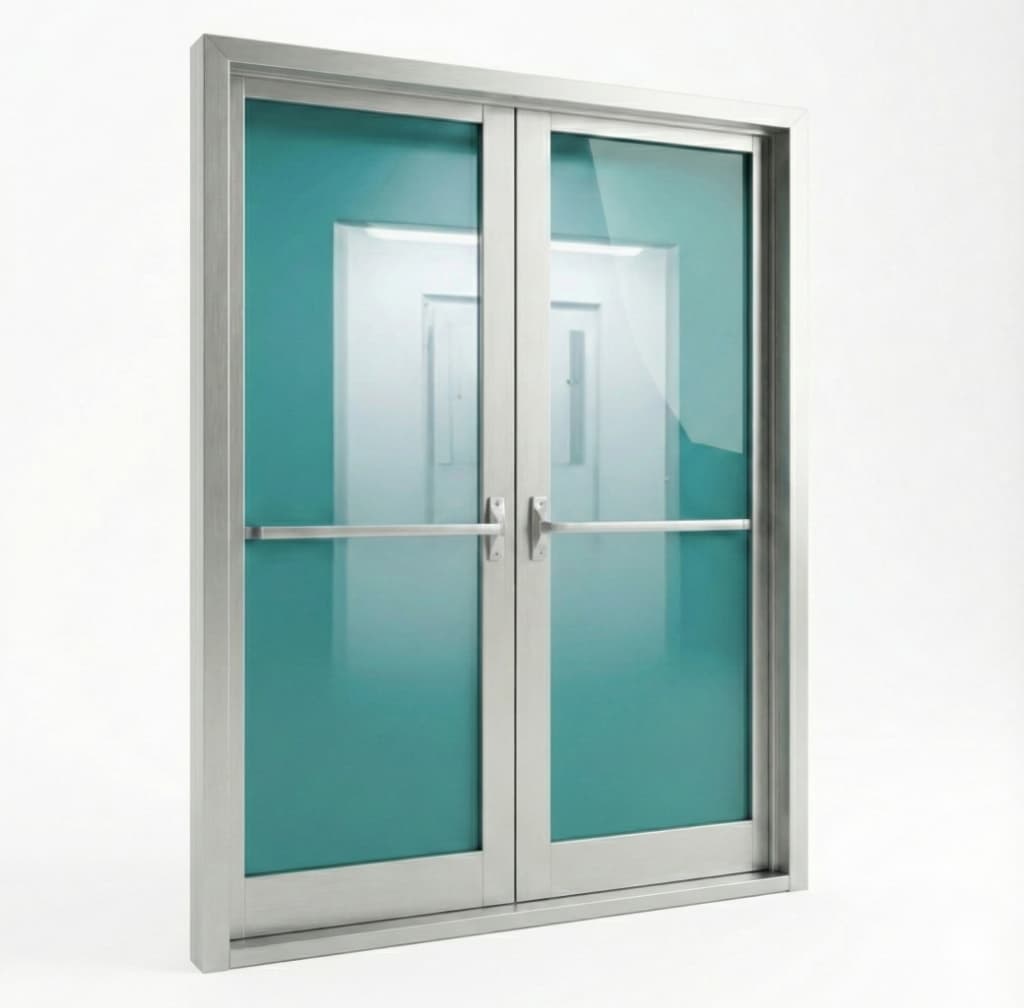

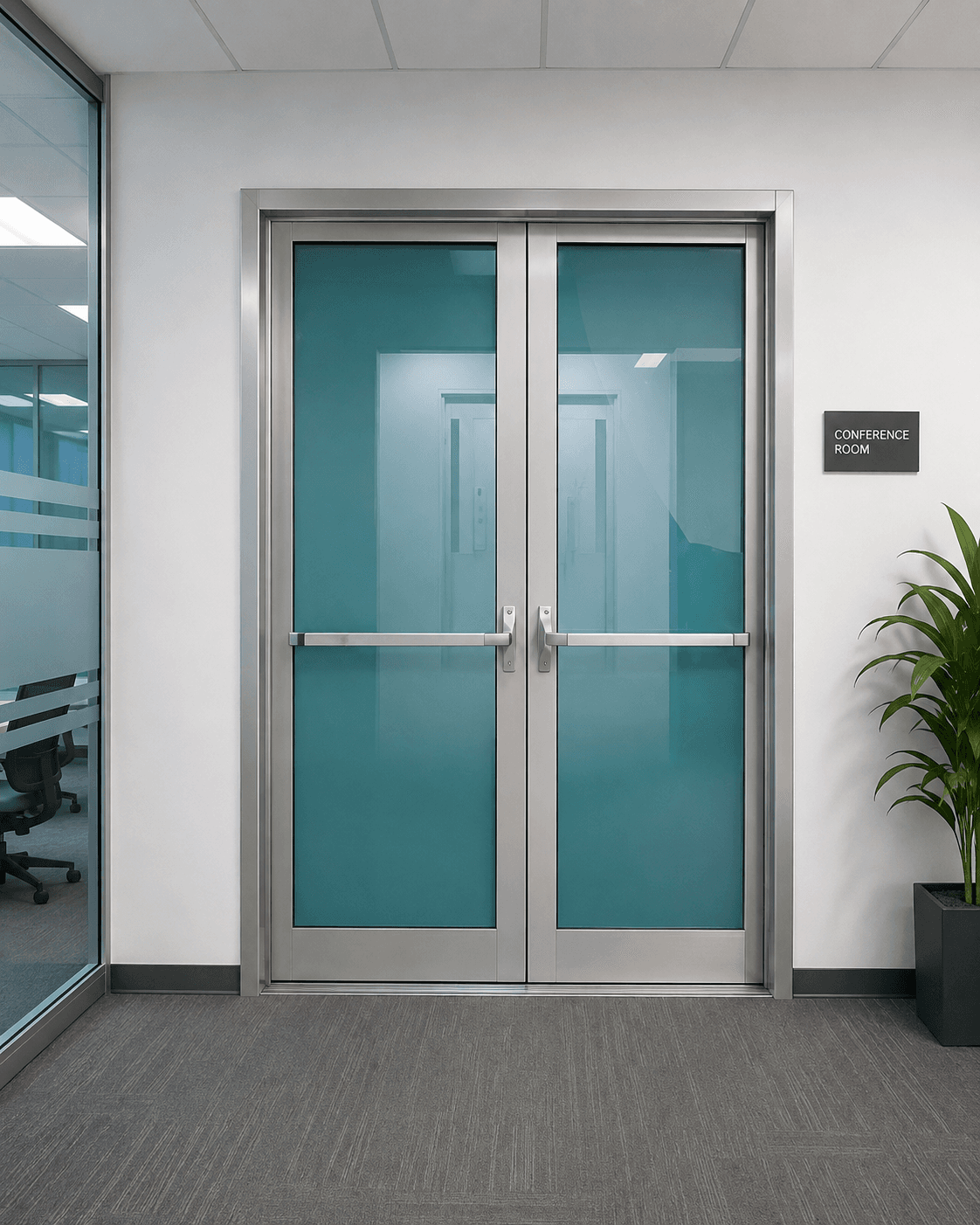

Glazed Fire Doors
Light & Visibility
16mm 2-hour fire-rated glass with steel frame and Rockwool infill, single or double leaf, rated up to 120 minutes.

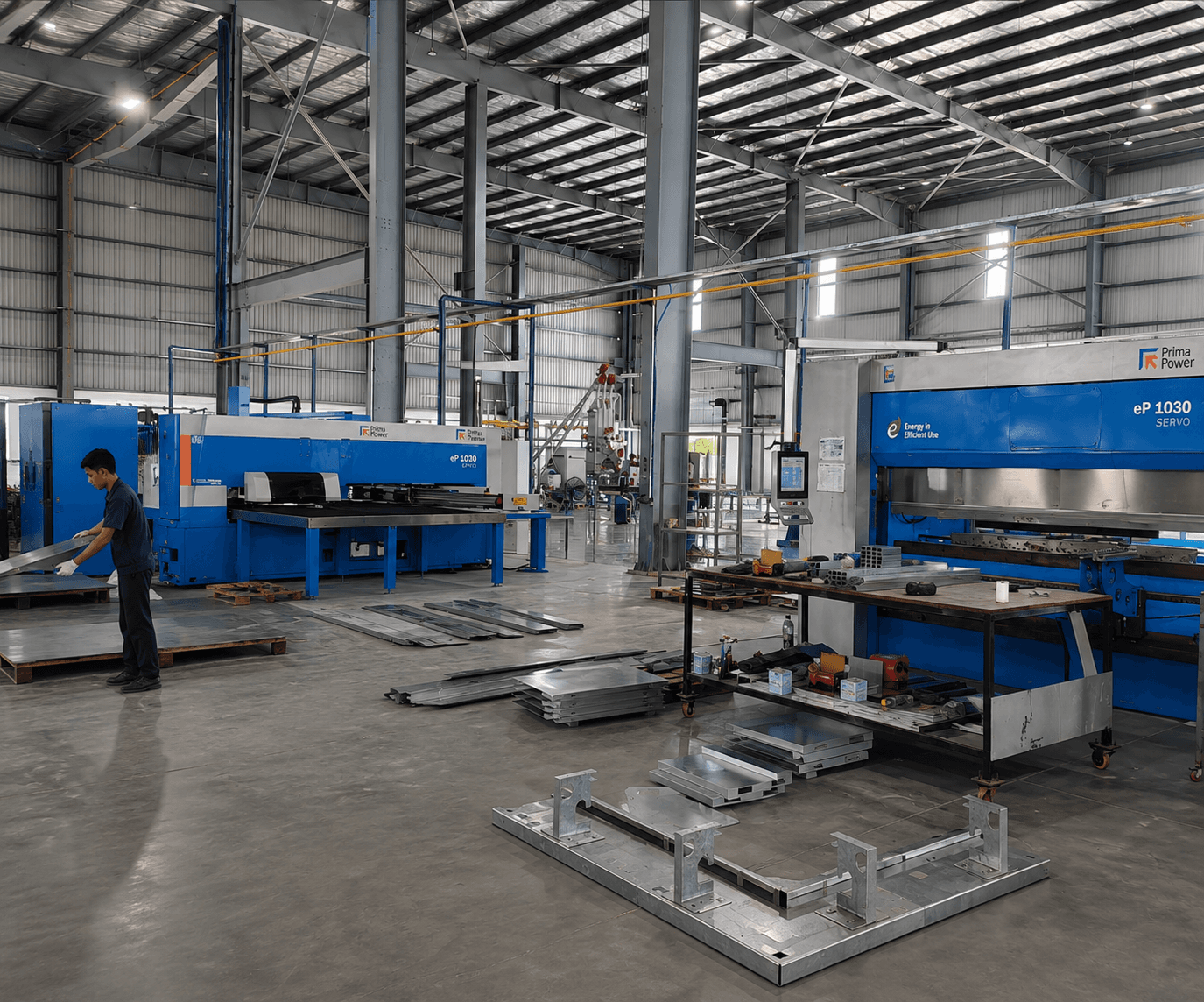

Learn MoreManufacturing
In-House Production — Full Quality Control
CNC notching and punching machines of European origin
CNC bending to exact tolerances
CNC-controlled powder coating oven — uniform deposit, optimal density, precise baking time
6 standard colours held in stock; custom RAL colours available for large-volume orders
Construction
Inside the leaf
Specifications
Compare Fire Door Systems
| Parameter | Steel Fire Door | Hollow Metal Shaft | Glazed Fire Door |
|---|---|---|---|
| Shutter | 0.8–1.2mm | 0.8–1.6mm | 16mm 2Hr Fire Rated |
| Frame | 1.2–1.6mm | 1.2–1.8mm | Steel |
| Infill | Ceramic wool / Rockwool | Honeycomb | Rockwool |
| Overall thickness | 46mm | 46mm | — |
| Max rating | 120 min | 120 min | 120 min |
| Configuration | Single / Double | Single | Single / Double |
Compliance
Applications and typical ratings
| Application | Typical rating | Requirement |
|---|---|---|
| Protected stairway enclosures | EI 30 – EI 60 | Fire doorsets, self-closing |
| Flat entrance doors (residential) | FD30S – FD60S | Self-closing per FS(E) Regs 2022 |
| Firefighting shafts & lobbies | EI 120 | Fire doorsets |
| Compartment walls between occupancies | EI 60 – EI 120 | Fire doorsets |
| Basement & sub-level access | EI 120 | Fire doorsets |
| Hotel & guest-room corridors | EI 30 – EI 60 | Fire doorsets, self-closing |
| Hospital compartment intersections | EI 120 | Fire doorsets, hold-open |
| Industrial fire-separating walls | EI 60 – EI 120 | Fire doors / shutters |
Need More Information?
Download the full product brochure or speak with our technical team for specification support.
